Hydraulic Breakers

Innovative & avant-garde characteristics

BRK hydraulic breakers have innovative and avant-garde characteristics to meet the requests of a more and more exigent market.

A better and resistant design capable of being used on any task, and easily serviced.

Our hydraulic breakers deliver maximum efficiency by matching hydraulic capacity of the carrier to the breaker, allowing consistent machine to breaker performance.

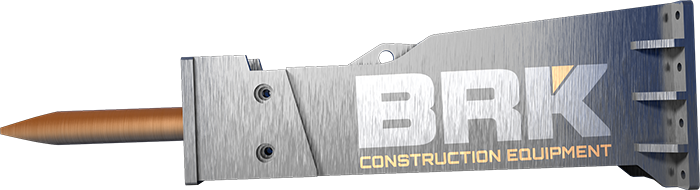

Hydraulic breaker BRK

Why choose BRK breakers?

A better and resistant design capable of being used on any task, and easily serviced. Our hydraulic breakers deliver maximum efficiency by matching hydraulic capacity of the carrier to the breaker, allowing consistent machine to breaker performance.

Optimized power-to-weight ratio
Cushion chamber
Long-stroke piston
Speed control valve
Underwater applications
Less moving parts and fewer seals
Easy and minimal maintenance
High quality shock absorbers
Less sensitive to system backpressure
Compact design that works in the toughest spots
High efficiency and longer service life
Anti-blank fire feature virtually eliminates dry firing

Small Range

		BRK 150	BRK 250	BRK 330	BRK 450	BRK 550	BRK 800	BRK 1000	BRK 1200
Hydraulic breaker weight	lbs	350	440	750	794	1170	1323	1810	900
Height with the chisel	in	39	48.50	50.50	52.36	58	59.06	71	1850
Demolition tool diameter	in	1.65	2.20	2.50	2.76	3.00	3.35	3.50	98
Oil capacity	gal/min	4/8	6/13	8/16	10/21	13/24	60/110	16/26	18.5/29
Strike frequency	c/min	700/1400	600/1200	500/1000	500/800	400/850	450/900	400/850	400/850
Working pressure	psi	1305/1740	1305/1740	1450/1885	1885	1740/2200	2030	1900/2300	150
Energy per strike	Ft lbs	150	250	330	347	550	627	1000	1300
Excavator to be used	lbs ton	1800/6600 0.8/3	6600/12000 3/5.5	11000/18000 5/8	10000/15000 5/7	15000/22000 7/10	18000/26000 8/12	19000/33000 9/15	19000/33000 13/17

Medium Range

		BRK 1400	BRK 1500	BRK 2200	BRK 2600	BRK 3000	BRK 3300	BRK 3800	BRK 4400
Hydraulic breaker weight	lbs	2601.9	2690	3300	3572	4300	4850	5513	7100
Height with the chisel	in	81	81	90	93	94	95	98	104
Demolition tool diameter	in	4	4	5	5	5.10	5.50	6	6
Oil capacity	gal/min	21/32	21/29	24/32	24/36	26/39	26/41	48/60	47/64
Strike frequency	c/min	300/750	300/700	300/700	300/650	350/550	350/600	350/600	350/600
Working pressure	psi	2320	2200/2500	2200/2500	2465	2300/2600	2300/2600	2320	2300/2600
Energy per strike	Ft lbs	1401	1475	2213	2286	2950	3320	3540	4425
Excavator to be used	lbs ton	33000/40000 15/19	26000/40000 16/20	35000/46000 20/22	45000/53000 21/25	44000/58000 23/27	62000/80000 25/29	62000/80000 33/40	61000/84000 30/40

Large Range

		BRK 7000	BRK 9000	BRK 10000	BRK 11000	BRK 12500	BRK 14000
Hydraulic breaker weight	lbs	8800	11000	13200	15400	17600	26400
Height with the chisel	in	117	125	128	158	177	197
Demolition tool diameter	in	6.5	7	7	8	8	9.50
Oil capacity	gal/min	53/70	63/85	68/95	82/103	92/110	119/140
Strike frequency	c/min	250/500	250/500	250/500	250/360	280/350	250/320
Working pressure	psi	2300/2600	2300/2600	2300/2600	2450/3050	2450/3050	2450/3050
Energy per strike	Ft lbs	7000	8850	10105	10700	12550	14000
Excavator to be used	ton	30/40	38/60	45/70	60/100	65/110	90/140
